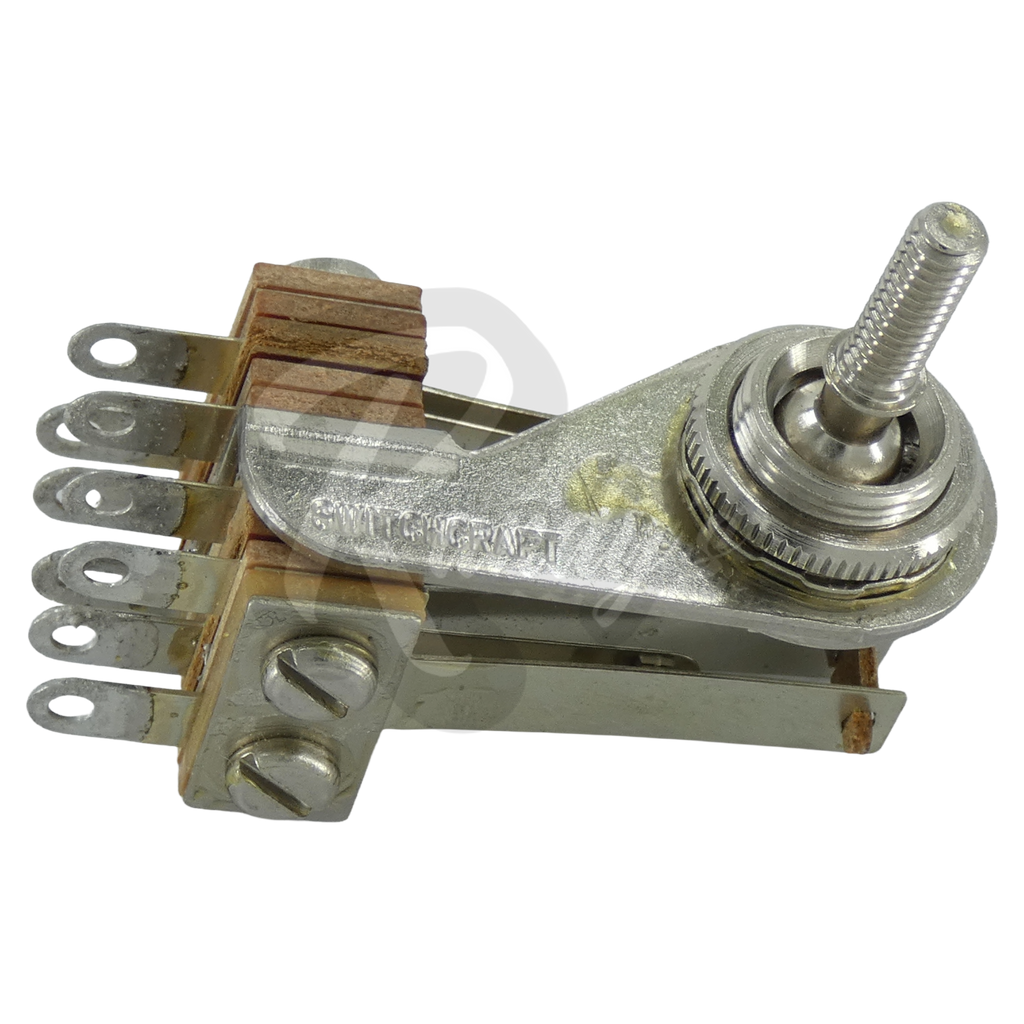

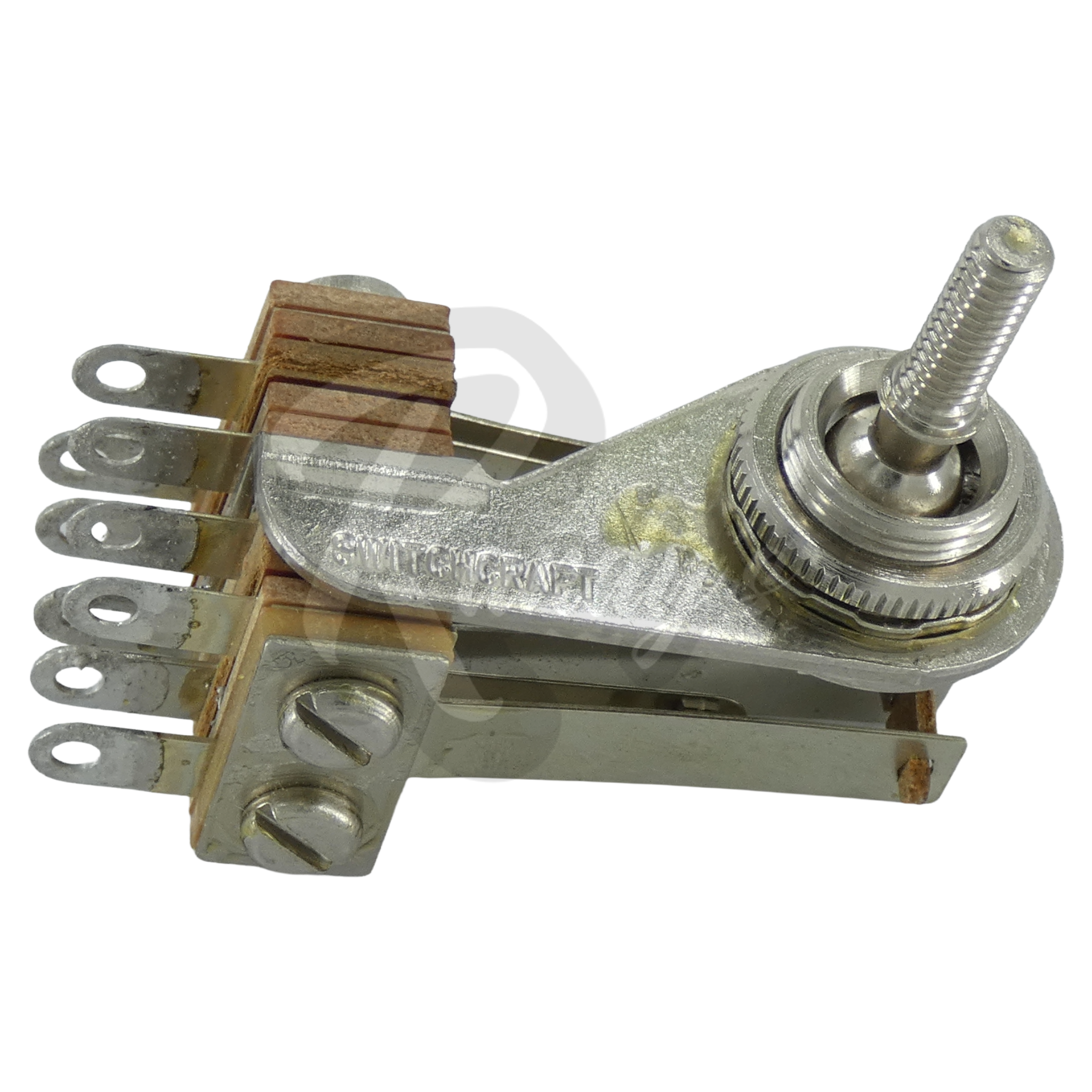

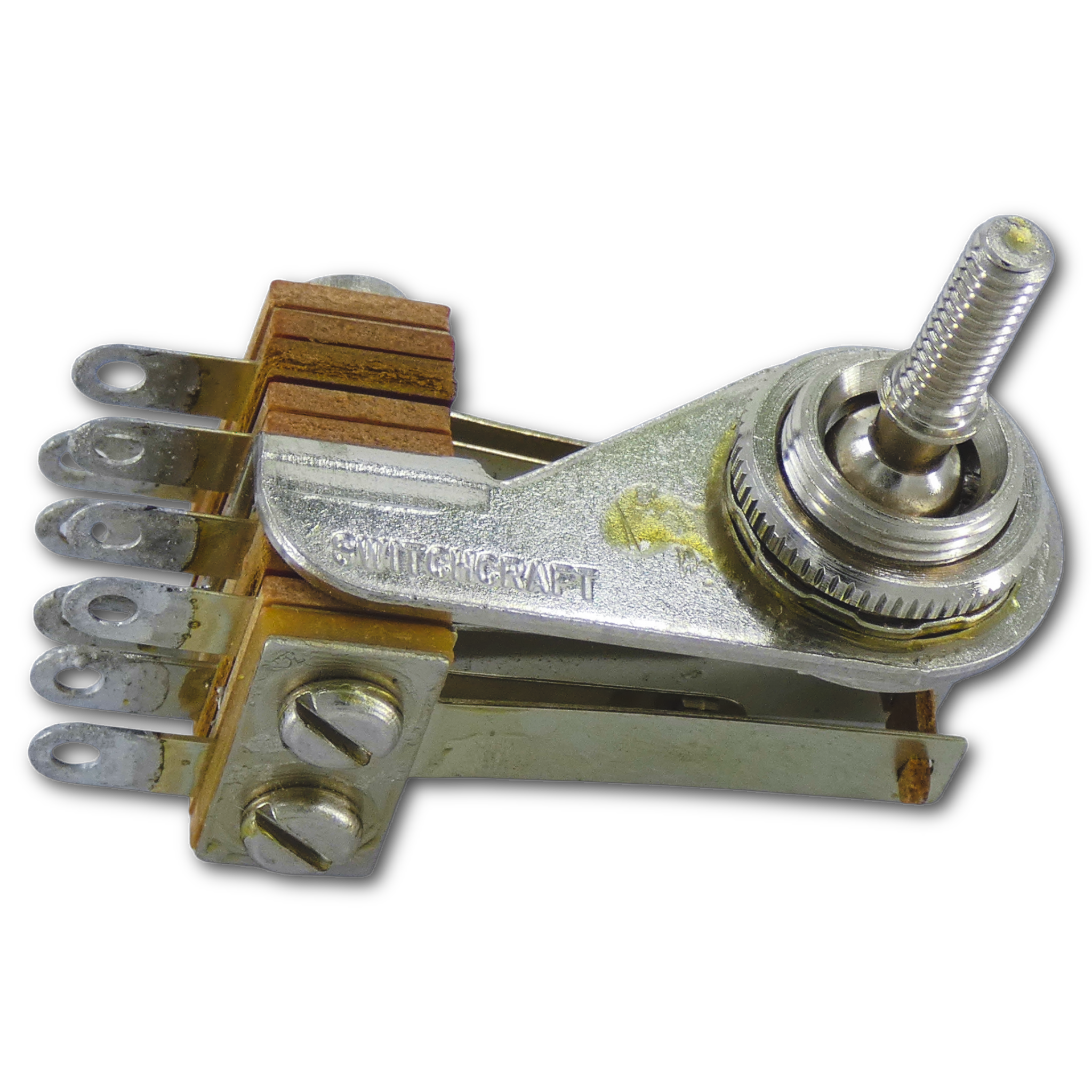

3-Way Sideways DPDT Toggle Switch for 3-Pickup Gibson® Guitars

DPDT stands for Double Pole, Double Throw and is a specialized 3-way toggle switch commonly used in guitars equipped with three pickups. Unlike traditional SPDT (Single Pole, Double Throw) and SPST (Single Pole, Single Throw) switches, a DPDT switch features two independent circuits that can be switched simultaneously, allowing for additional wiring flexibility and more complex pickup combinations.

Individual Switchcraft 3-way toggle switch for bass and electric guitar. Includes toggle switch nut and washer. Does not include switch tip. Fits Gibson® guitars with three pickups.

• Country of Manuacture: Made in the USA
• Electrical:
  • Fine Silver Contact Ratings
    • 3A
    • 300W maximum AC non-inductive load standard.
  • Leakage Resistance
    • 1,000 MW or Greater
    • Dielectric Strength
    • 250 VDC
  • DPDT
  • RoHS Compliant
•


• Materials:
  • Frame

    • • Steel (Plated)
  • Bushing & Shaft
    • Copper Alloy (Plated)
  • Springs
    • Copper Alloy

  • Mounting Hardware
    • Knurled Copper Alloy
• Insulation
  • Rigid plastic spacers with plastic tubing through stack.
  • Rigid plastic and/or thermoplastic lifters.
  • Thermoplastic cam on actuator end.
